MiniDAQApp Diagrams

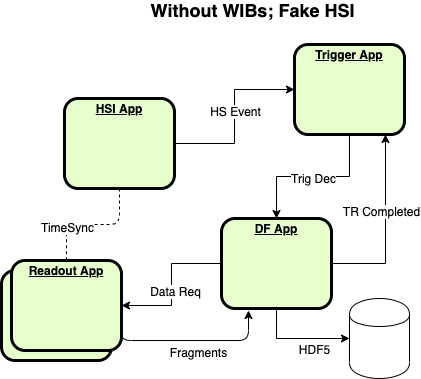

Here is a diagram of a simple system that is supported in dunedaq-v2.6.0. It uses 'fake' sources to emulate the behavior of the FELIX and HSI electronics.

Overview

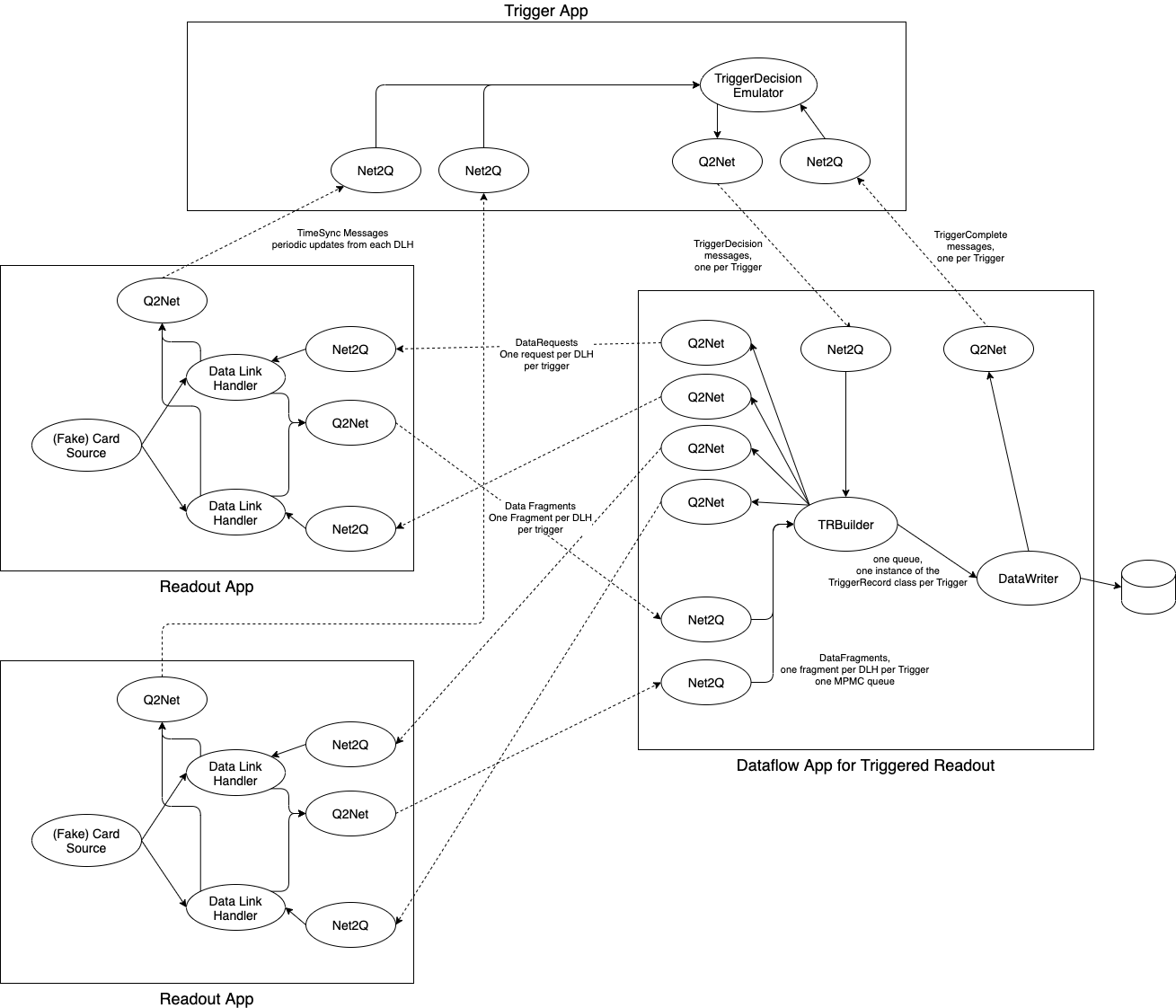

Here is a diagram of a slightly different simple system that also uses emulators instead of real electronics. This diagrams shows some of the internal details of the processes, especially the DAQModules and queues between them.

Some internal detail
