Asiolibs¶
Boost.Asio-based socket reader plugin for low-bandwidth devices
Example usage¶
local-crt-bern1x1-config and local-crt-grenoble-1x1-config (defined in daqsystemtest/config/daqsystemtest/example-configs.data.xml) are session configurations with a CRT reader application accompanied by a socket reader application.

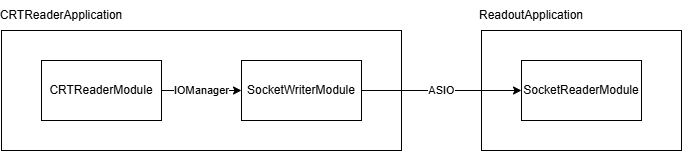

CRT reader application includes a data reader (either CRTBernReaderModule or CRTGrenobleReaderModule) which reads data from the hardware then puts it into a queue and data writers (SocketWriterModule) which read data from the queue then send it over a socket.
Socket reader application includes a data reader (SocketReaderModule) which reads data from the socket (CRTBernFrame/CRTGrenobleFrame) then puts it into another queue to be processed by DataHandlingModel.
How to run¶
drunc-unified-shell ssh-standalone config/daqsystemtest/example-configs.data.xml local-crt-bern-1x1-config uname-local-test
drunc-unified-shell ssh-standalone config/daqsystemtest/example-configs.data.xml local-crt-grenoble-1x1-config uname-local-test
The following table includes relevant configuration details that can be set by the user. Users can either configure TCP or UDP as the socket type.
| Configuration | Can be changed from | Object ID/Attribute name |
|---|---|---|
| Local IP | config/daqsystemtest/moduleconfs.data.xml | def-socket-reader-conf/local_ip |
| Remote IP | config/daqsystemtest/moduleconfs.data.xml | def-socket-writer-conf/remote_ip |
| Port | config/daqsystemtest/ru-segment.data.xml | socket_wib_101_link0/port |
| Socket type | config/daqsystemtest/moduleconfs.data.xml | def-socket-reader-conf/socket_type def-socket-writer-conf/socket_type |
