Developer Guide¶

This guide walks through the architecture of runconf-ui from the perspective of a developer. For questions about Textual specifically, see the Textual documentation.

Code Structure¶

runconf_ui is split into five module types:

apps — full Textual applications (entry points).
interfaces — interfaces with DAQ libraries.
screens — Textual screens used by the DAQ applications.
utils — internal utility functions.
widgets — internal Textual widgets.

Developer Guide overview

The codebase is also functionally split in half:

The backend — responsible for core logic: opening configurations and repo management. Exposed to the frontend through a single RunconfUIBackend class.
The Textual frontend — thin layer that renders state and forwards user interactions to the backend via Textual's Message system.

The Backend¶

RunconfUIBackend is the central controller. It is initialised with a RunconfContext dataclass that carries all necessary boot parameters:

@dataclass
class RunconfContext:
    apparatus: str           # e.g. "np02"
    conf_directory: Path     # path to the config repo
    use_local: bool          # local filesystem vs remote git
    config_file_name: str | None   # remote only
    base_url: str | None           # remote only
    ops_url: str | None            # remote only
    output_directory: Path         # where saved configs are written
    log_level: LogLevels           # "INFO" | "DEBUG" | "WARNING"

The backend has four main responsibilities, described below.¶

The Repo Manager¶

Two repo managers are available, both inheriting from RepoManagerInterface:

LocalRepoManager manages repositories on the local filesystem. It requires the apparatus name and a path to the configuration directory. It uses get_configs_with_session() to find all .data.xml files in that directory that contain a Session DAL.

RemoteRepoManager manages repositories stored in remote git repositories via runconftools.ConfPool. It requires the apparatus name, a local cache directory, the config filename to look for, and the ops and base repository URLs.

Both managers expose the same interface: get_available_daq_versions(), get_daq_sessions(), set_daq_version(), select_config(), and get_runconf_ui_config_path(). The last method locates the YAML system configuration file at [conf_directory]/runconf-ui-settings/[apparatus].yml.

System Configuration¶

Once a user has selected a repo and session, the paths for the OKS config and YAML system configuration are passed into SystemConfigReader. This is the public facade for the system configuration pipeline, which runs in three stages:

1. SystemConfig reads the YAML file and converts it into typed dataclass skeletons using YamlToSystemData. Nothing from the OKS configuration is touched at this stage. The output is a set of DisableableGroupData and AdjustableGroupData objects.

2. ConfigAssembler takes those skeletons and a live Configuration object, and builds Group trees from them using the system builders (see below). The output is a list of AssembledGroup objects.

3. AssembledConfig is the final output, containing:

disableable — list of AssembledGroup objects for the enable/disable panels.
adjustable — list of AssembledGroup objects for the adjustable attribute panels.
disableable_nodes, adjustable_nodes, all_nodes — flat dictionaries mapping node paths to NodeStatus objects, used for O(1) lookup by the backend and frontend.

Each AssembledGroup contains a list of AssembledSystem objects. Each AssembledSystem owns a Group root node representing that system's state tree.

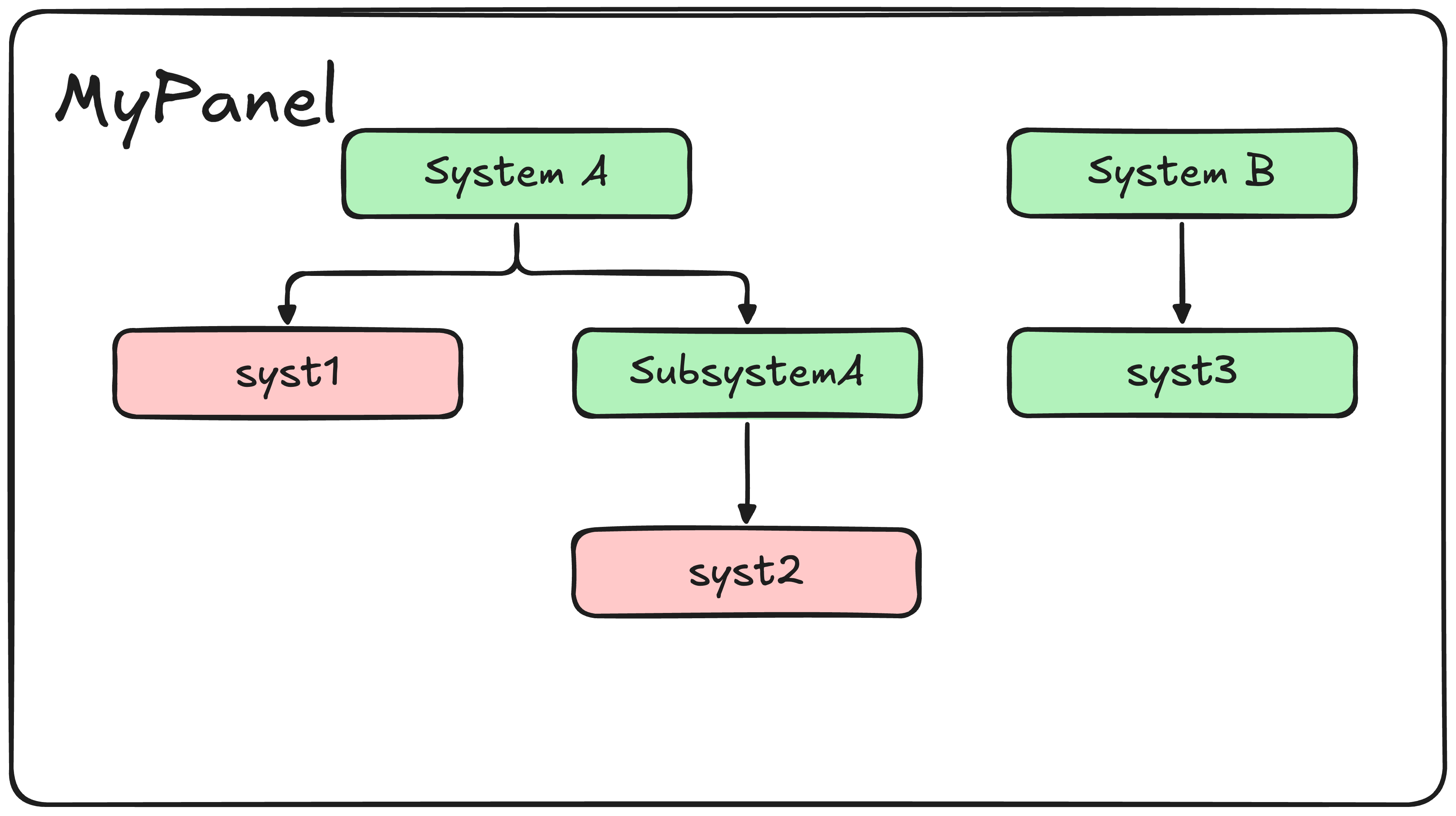

AssembledConfig structure

The Configuration Tree¶

When a system definition is assembled, DisableSystemBuilder or AdjustableSystemBuilder converts it into a tree of Node objects. There are two node types:

Leaf wraps a single Adapter. It is the only node type that reads from and writes to conffwk.

Group aggregates the state of its children using a strategy function: - strategy=all — AND semantics: the group is enabled iff every voting child is enabled. Used when subsystem_dependent=False. - strategy=any — OR semantics: the group is enabled if any voting child is enabled. Used when subsystem_dependent=True, and for all intermediate subsystem groups.

Child flags¶

Every child of a Group carries two boolean flags:

`votes`	`propagate`	Meaning
`True`	`True`	Normal disable child. Influences parent state and receives `set()` calls from the parent. Default.
`False`	`True`	Gated by parent and set when parent is set, but does not influence parent state. Used for controlled-but-non-voting components.
`False`	`False`	Adjustable child. Fully independent of the enable/disable tree. Never receives `set()` from parent.

Adapters¶

Leaf nodes wrap one of three Adapter subclasses, which provide a uniform get()/set() interface over the underlying DAL:

Adapter	Used for
`DisableComponent`	`Resource` DAL objects — toggled via `enable_component` / `disable_component` from `confmodel_dal`. Raises `IncompatibleDalException` if the DAL is not a `Resource` subclass.
`DisableAttribute`	Named boolean-like attributes on a DAL (e.g. `tp_generation_enabled`). Also checks the DAL's resource-disabled state: if the DAL itself is disabled as a resource, the attribute is considered disabled regardless of its stored value.
`AdjustableAttribute`	Any-valued attributes (trigger rates, thresholds, etc.). Reads and writes the attribute value directly without any resource-state logic.

State¶

State is computed lazily by compute_state(node, parent) and never cached on nodes. Call walk() again after any set() to get fresh values. Three states are possible:

State	Meaning
`ENABLED`	Node is on, its DAL is resource-enabled, and its parent (if any) is on.
`DISABLED`	Node is internally off but its parent is on. Renders as an inactive button.
`PARENT_DISABLED`	Disabled due to an external condition: the parent group is off, or the DAL is resource-disabled in the session. Takes precedence over the node's own value. Renders as greyed-out and non-interactive.

walk(root) performs a depth-first traversal of the tree, yielding a NodeStatus for every node. NodeStatus carries the node itself, its computed State, and its parent Group.

Factories¶

The builders use factory classes to create Leaf and Group nodes from the YAML dataclasses:

Factory	Creates
`ComponentFactory`	`Leaf(DisableComponent)` — one per matching DAL object
`AttributeFactory`	`Group(strategy=any)` containing `Leaf(DisableAttribute)` — one leaf per matching DAL in the specified segments
`RelationshipFactory`	Same structure as `AttributeFactory`, but first resolves `enabled_state`/`disabled_state` string IDs to DAL objects
`AdjustableFactory`	`Leaf(AdjustableAttribute)` — one per matching DAL object

All factories inherit from FactoryBase, which provides resolve_dals() for looking up DAL objects by class and ID, and is_filtered() for applying FilterData exclusions.

The Full Backend Class¶

RunconfUIBackend wraps all of the above and exposes a simple API to the frontend:

Method	Description
`get_daq_versions()` / `get_sessions()`	Forward to the repo manager
`set_daq_version()` / `set_daq_session()`	Forward to the repo manager
`open_selected_session()`	Load the selected config, assemble the tree, build indices
`save_config()`	Commit the in-memory config and write a consolidated copy to disk
`toggle(group, node_id)`	Toggle a disableable node, then rebuild all indices
`set_value(group, node_id, value)`	Set an adjustable node's value, then rebuild indices
`get_disableable_values()`	Return all disableable node statuses grouped by panel
`get_adjustable_values()`	Return all adjustable node statuses grouped by group
`get_tree_views()`	Return Rich Tree objects for all system map panels
`get_config_tree()`	Return a Rich Tree of the full OKS configuration

After every mutation (toggle or set_value), _rebuild_indexes() is called. This re-walks all system trees, rebuilds the flat node dictionaries, and regenerates the tree views.

Note: The backend class is currently rather large. A refactor is planned for a future release.

The Textual Frontend¶

The frontend consists of RunconfUIApp (the main App subclass) and a set of screens and widgets. It is intentionally lightweight — all widgets communicate via Textual's Message system rather than holding references to the backend directly.

Screens¶

Screen	Type	Description
`MainScreen`	Mode screen	Primary screen. Always present as the base layer.
`LoadingScreen`	Modal	Shown while a config is being loaded in a worker thread.
`QuitScreen`	Modal	Confirmation dialog with Create+Quit, Quit Without Saving, and Cancel options.
`CreateScreen`	Modal	Confirmation dialog with Create+Quit and Cancel options.
`HelpScreen`	Overlay	Scrollable help text.
`ExceptionScreen`	Modal	Displays an error message with OK and Quit options.

Widgets¶

Widget	Description
`FileSelect`	Drop-downs for DAQ version and session, plus the Open button and status text.
`EnableDisableTabs`	`DynamicTabbedContent` — one `EnableDisablePanel` tab per disableable group.
`EnableDisablePanel`	Scrollable list of toggle buttons, one per node in the group.
`AdjustableAttributeTabs`	`DynamicTabbedContent` — one `AdjustableAttributePanel` tab per adjustable group.
`AdjustableAttributePanel`	Scrollable list of `AdjustableAttributeContainer` widgets.
`RichTreeTabbed`	`DynamicTabbedContent` — one `RichTreePanel` tab per system map view.
`ConfigTreePanel`	Scrollable display of the full OKS configuration tree.
`OptionsPanel`	Create, Reset, Help, and Quit buttons.

DynamicTabbedContent is an abstract base that wraps a TabbedContent and handles full rebuilds (load()) and in-place updates (update()) separately. Full rebuilds are triggered when a new config is loaded; in-place updates are triggered by node state changes.

Message Flow¶

A widget emits a message — e.g. a button in EnableDisablePanel emits NodeToggledMessage.
RunconfUIApp handles the message and calls the corresponding backend method — e.g. backend.toggle(group_id, node_id).
The backend mutates the OKS configuration, rebuilds its node index, and returns.
RunconfUIApp calls _refresh_enabled_info(), which pulls fresh state from the backend and calls update() on all relevant widgets.

When a config is first loaded, load() is called instead of update() to fully reconstruct the tab structure.

Config loading¶

Config loading runs in a background worker thread (@work(thread=True)) to keep the UI responsive. A LoadingScreen modal is pushed before the worker starts and popped when it completes (or fails). On failure, an ExceptionScreen is pushed with the exception message.

Utils¶

The utils module contains:

Config utilities (config_utils.py) — functions for opening, copying, and consolidating OKS configs; searching for configs with sessions; looking up classes and DALs; setting up the working directory.
Logging (logging.py) — a module-level singleton logger (_LOGGER) initialised once via init_logger() and retrieved anywhere via get_logger(). The logger writes to a file and does not emit to the console (to avoid interfering with the TUI).
Rich utilities (rich_utils.py) — ConfigTreeRenderer for drawing the full OKS config tree, and draw_node_tree for drawing individual system state trees, both as Rich Tree objects.
